Feature

• AWS IoT educational learning platform: Fully integrated board with ESP32C3 and nRF52840 chip perfect for IoT knowledge learning and embedded development
• Designed for AWS-workshop evernts: Specifically for IOT202 Building compliant, secure connected products with AWS IoT Workshop at re:Invent 2023
• Rich interfaces: Using a central microcontroller to connect buttons, LEDs, a display, and a connectivity module.

Description

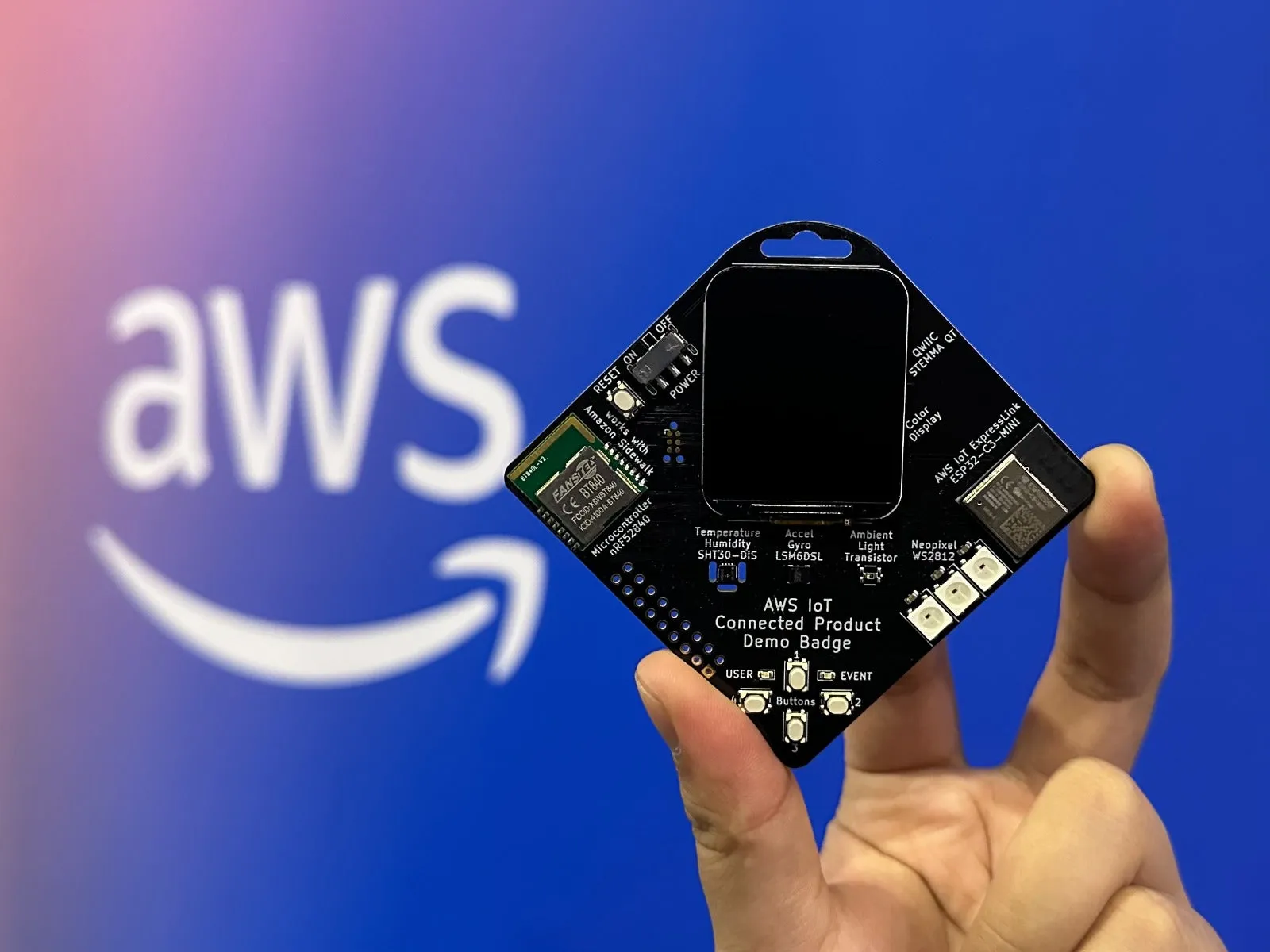

The Demo Badge serves as an educational IoT learning tool that showcases a fully integrated connected product developed by Thomas Kriechbaumer, a Senior Solution Architect at Amazon Web Services (AWS).

This Demo Badge is tailored for the IOT202 Workshop at re:Invent 2023, designed to help developers and enthusiasts understand how to integrate AWS IoT services into their connected products. It covers AWS IoT Core, AWS IoT ExpressLink, Amazon Sidewalk, and more.

Different classes of products such as toys, kitchen appliances, and vacuum robots can utilize the same building blocks as the Demo Badge. This includes a central microcontroller that connects various components like buttons, LEDs, a display, and a connectivity module, resulting in a similar architecture among them.

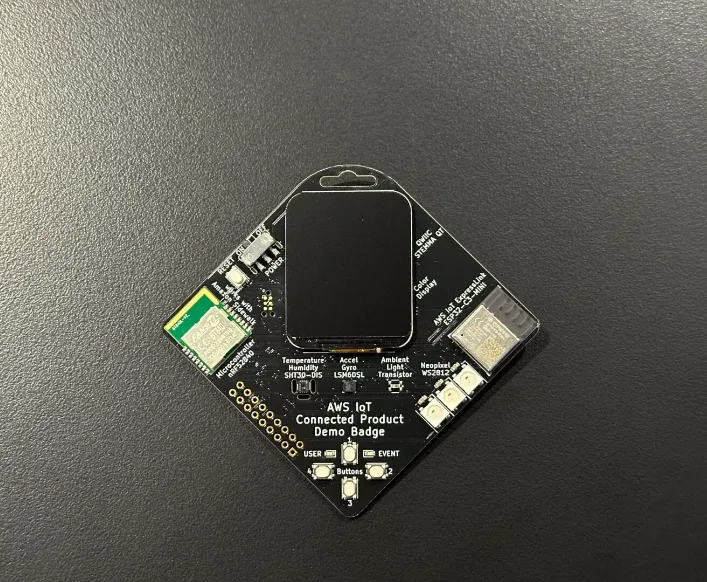

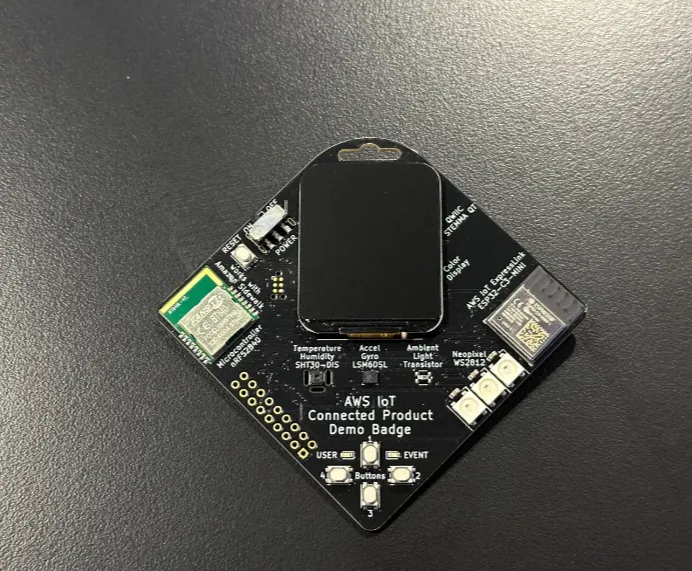

The parts of the Demo Badge are clearly labeled for easy identification. While the supporting circuitry and parts are not labeled, they are not necessary for this workshop. You will interact with the Demo Badge, its integrated connectivity modules, and perform tasks such as software programming, button presses, LED animations, and sensor manipulation.

All content, material, and source code is available on the

It also contains a link back to the workshop page and its instructions.

Visit the and the growing list of

.

Visit for a growing list of qualified development kits and silicon partners.

Visit thet for further information on how to integrate your connected product into the Smart Home using Matter, Alexa, and Amazon Echo devices.

You can find further reading material on the Demo Badge device in the low into and from the AWS Cloud:

Application

• Smart Home Control
• Educational IoT
• Environmental Monitoring

Hardware Overview

Specification

Component	Detail
Microcontroller	● Nordic Semiconductor nRF52840 ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz ○ ARM® TrustZone® Cryptocell 310 security subsystem ○ 1 MB flash and 256 kB RAM ○ Bluetooth 5 ○ Matter & Thread compatible ○ works with Amazon Sidewalk over BLE ● packaged and certified module with on-board PCB antennaFanstel BT840
AWS IoT ExpressLink module	Espressif ESP32-C3-MINI-1-A ● factory-programmed with AWS IoT ExpressLink firmware and provisioned with birth certificate signed by Espressif certificate authority
External Flash	● Winbond W25Q128JVSIQ ● 128 Mbit / 16 MiB ● QSPI interface ● used for USB mass storage ● FAT file system

For more information, please check .

Part List

AWS IoT - Connected Product AWS Badge

x1
