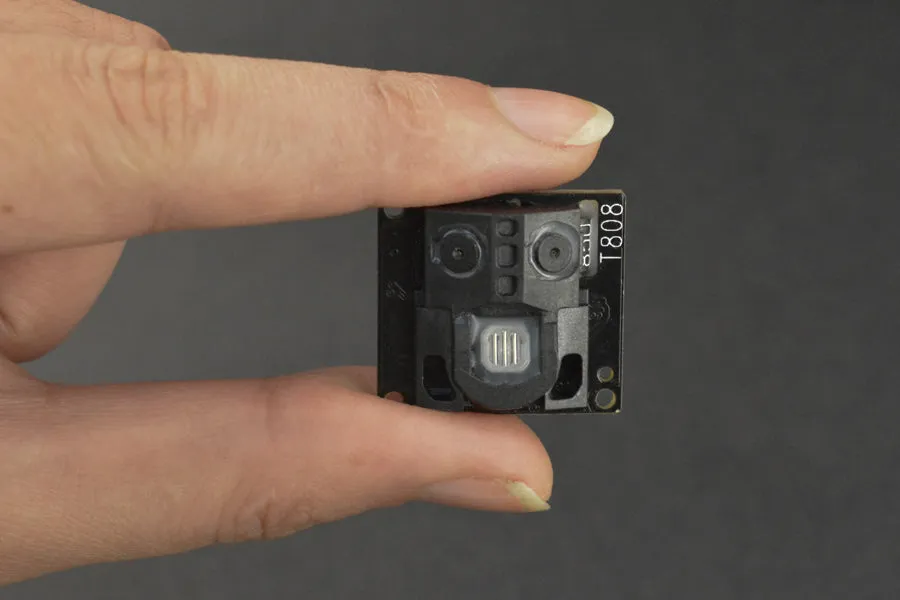

This is a Linear array solid LiDAR. Based on the principle of Triangulation, it is equipped with related optics, electricity, and algorithm design, to achieve 100 degrees of high-precision laser distance measurement, and output point cloud data of the scanning environment. It can be used for robot obstacle avoidance, path planning, etc.
Ultra-wide FOV to assist robot vacuum cleaner through blind spots
Field of View up to 100 degrees, Wide range of detection
Obstacle avoidance along the wall with performance improvement
The GS2 can obtain more measurement information in the vertical direction, helping smart devices such as robot vacuum cleaner and service robots with accurate real-time monitoring of the edge, efficiently complete multiple difficult tasks such as accurate.
Compact and light, flexible installation
The size of the whole device is only 25.6 (L) × 23.6 (H) × 10.8 (W) mm, which can be flexibly and easily integrated into various small smart devices. It can fully meet the refined detection needs of intelligent equipment such as robot vacuum cleaner.
Multiple authoritative certifications, high safety performance
Application scenario
Dimension
Features:
Applications:
Specification:
100Distance200mm (≤3%)
200≤Distance300mm (≤8%)
Documents:
Note: Please Unzip the DFR1030 GS2 tool in the same folder
